T-1000s programmable LED pixel light controller 2048 pixels SD control

T-1000s programmable LED pixel light controller 2048 pixels SD control

LEDchip:

Item Type: T-1000s

IP Rating:

Lamp Power(W):

Input Voltage(V): 7.5-24v

Warranty(Years): 1

Product Details

t-1000s rgb led controller

SPI / TTL / DMX online programmable LED controller, you can program by yourself to get custom LED effect, software is free of charge if you purchase controller.



Widely be used to control programmable LED strip, such as ws2801, ws2811/2812, LPD8806, etc; LED display to show animation.

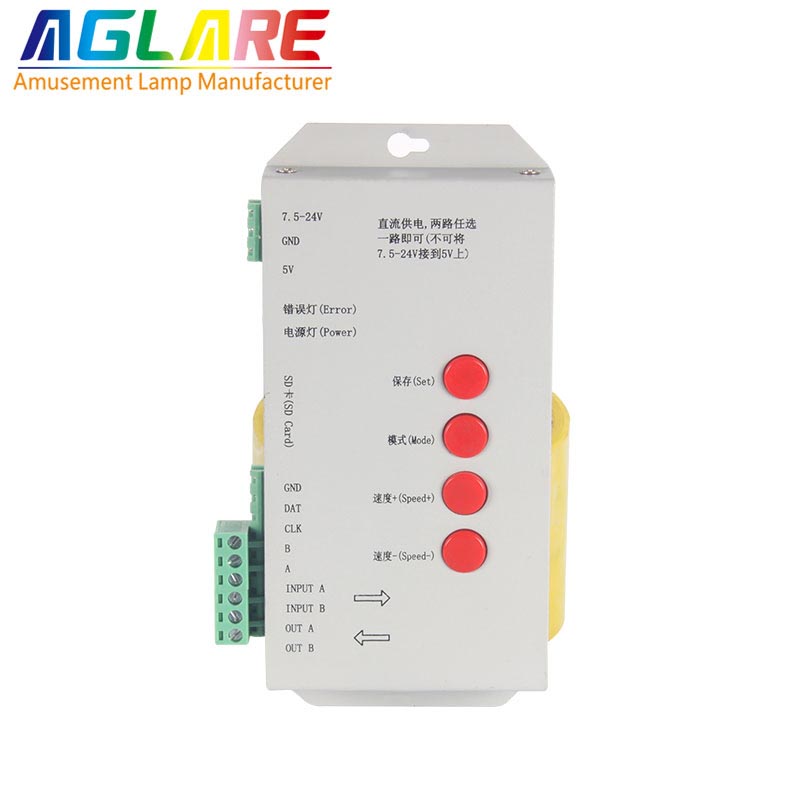

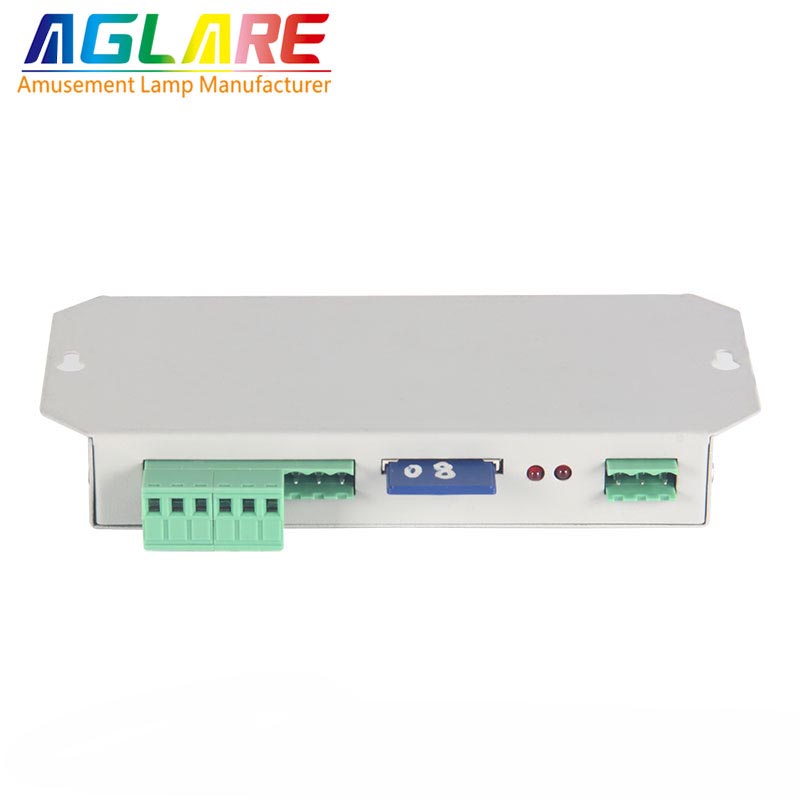

LED T-1000S controller:

1>,32—256 Gray,Support software Gamma correction.

2>,Support the rules and special-shaped handle.

3>,Single-port output,can support 2048 lights.

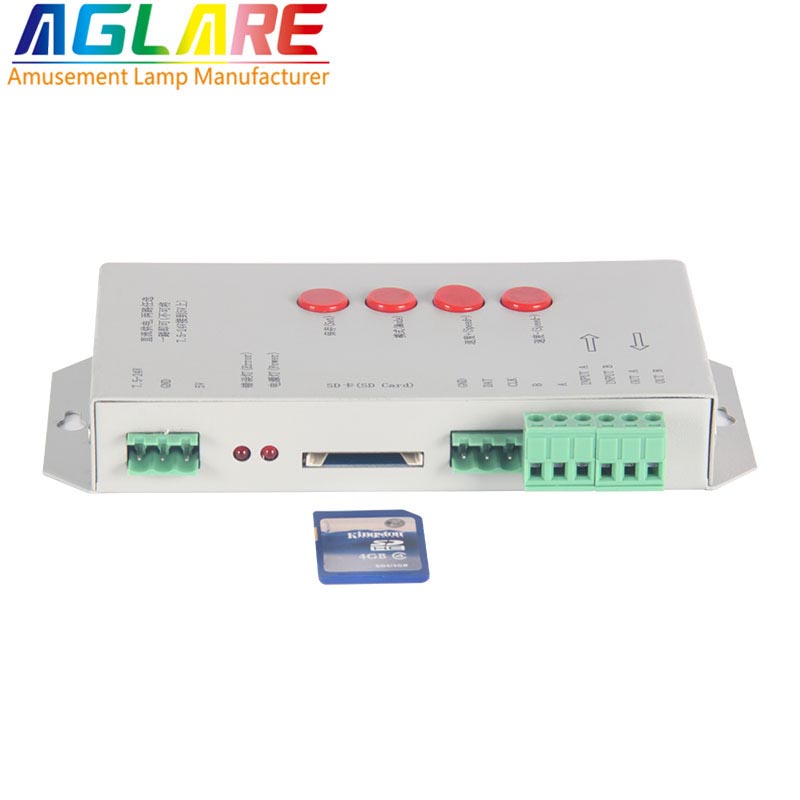

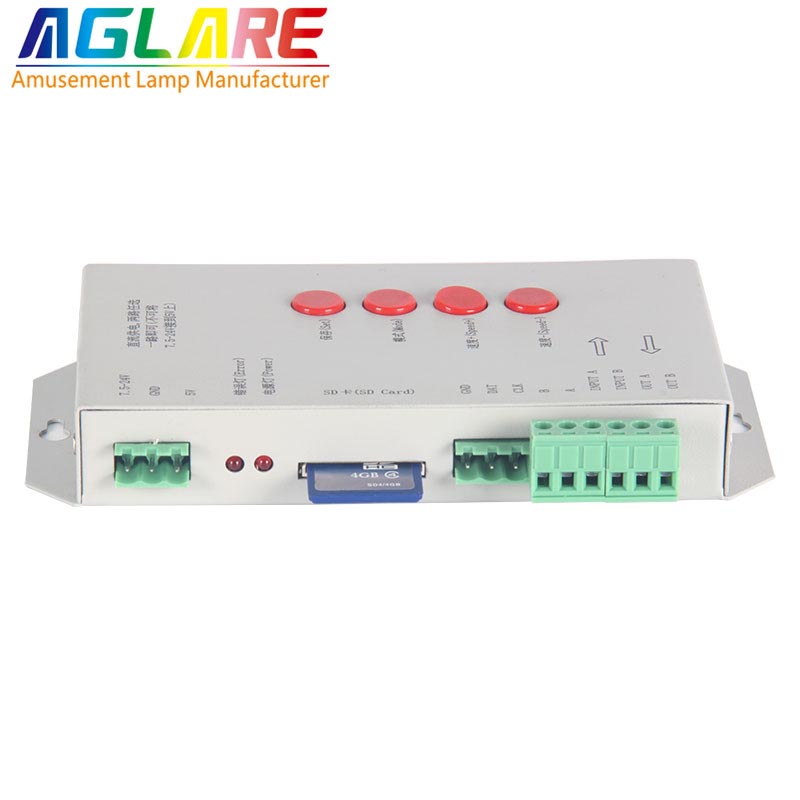

4>,Off-line(SD Card) control, play back content stored in the SD card.

5>,T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,

after formatting the SD card as “FAT” format.

6>,The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.

7>,Compatible with single line or double line chips.

NOTE:1. When T-1000S controller less than 512 pixels the frame rate can reach 30fps. When T-1000S control more than 512 pixels the frame rate will slow down automatically.



Parameter

Chip type

Software code&

Controller type

Lamps/(MAX)

Note

LPD6803,D705,1101,6909, 6912

T-1000-6803

8192 pixels


LPD8806,LPD8809

T-1000-8806

8192 pixels


TM1803,TM1804,TM1809,TM1812

T-1000-TM

8192 pixels

TM1804 and TM1809 are divided into high and low

TM1903,TM1904,TM1909,TM1912

T-1000-TM19

8192 pixels


UCS6909,UCS6912,UCS7009,UCS5903

T-1000-UCS-32

8192 pixels


UCS1903,UCS1909,UCS1912

T-1000-UCS-256

8192 pixels

1903 and 1909 are divided into high and low

UCS3903

T-1000-UCS-1024

8192 pixels


DMX512

T-1000-DMX

170 pixels(rgb)

Compatible with standard DMX512

WS2801,WS2803

T-1000-WS

8192 pixels


WS2811

T-1000-WS2811

8192 pixels

WS2811 be divided into high and low

DS189

T-1000-DS189

8192 pixels


TLS3001,TLS3002,TLS3008

T-1000-TLS

* pixels


P9813

T-1000-P9813

8192 pixels


SM16715

T-1000-SM16715

8192 pixels

SM16715 be divided into high and low

SM16716

T-1000-SM16716

8192 pixels


BS0901,BS0902

T-1000-0901

8192 pixels


BS0815

T-1000-0815

8192 pixels






SPI and RS485

CLK

Clock signal

B

Signal A / DMX+

DAT

Data signal

A

Signal B / DMX-

GND

Signal ground

GND

Signal ground















TAG:  T-1000s LED light controller  LED controller
