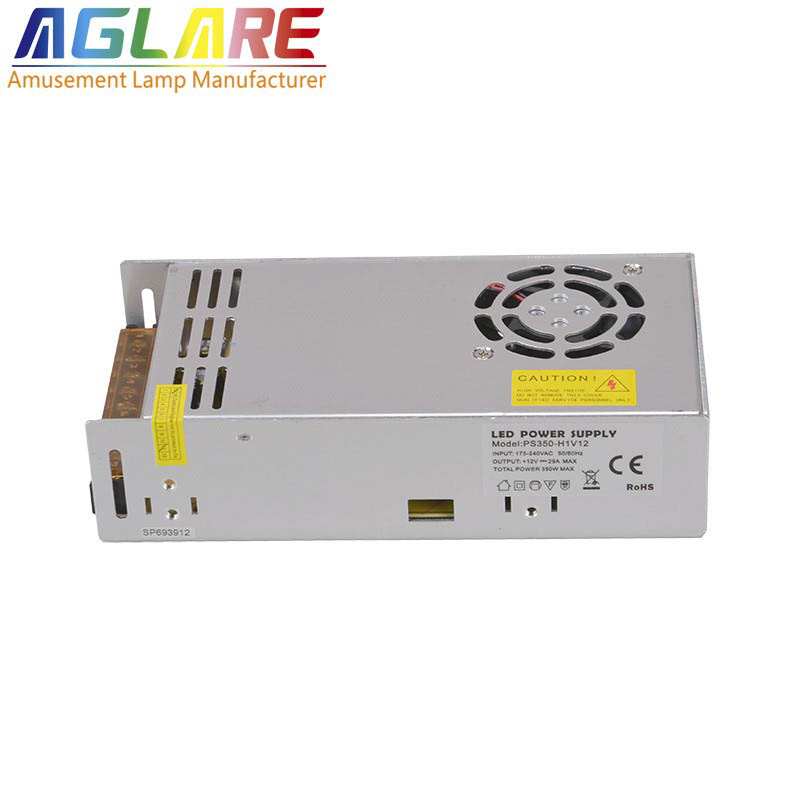

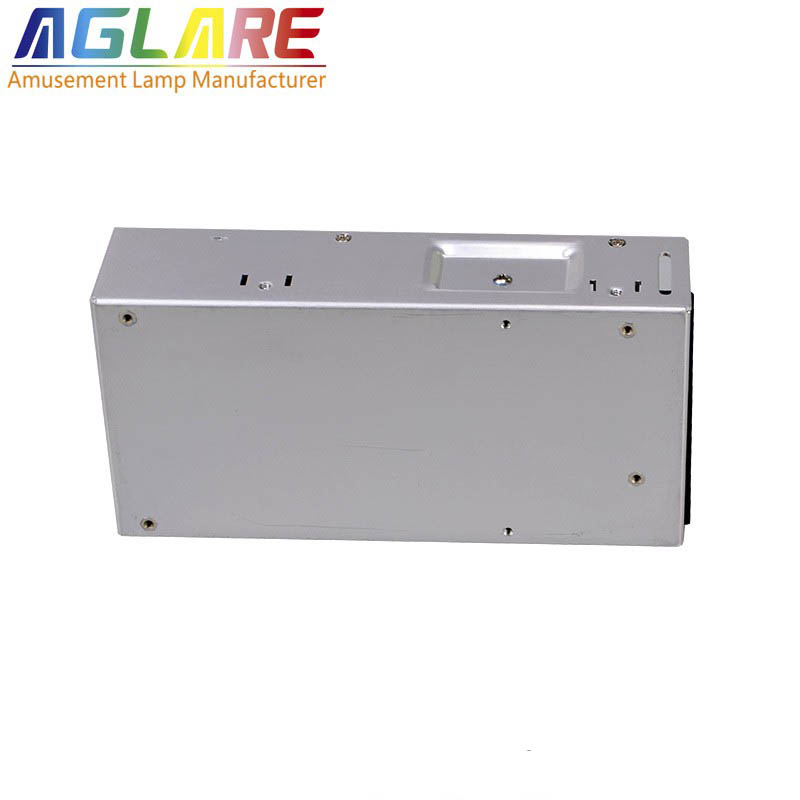

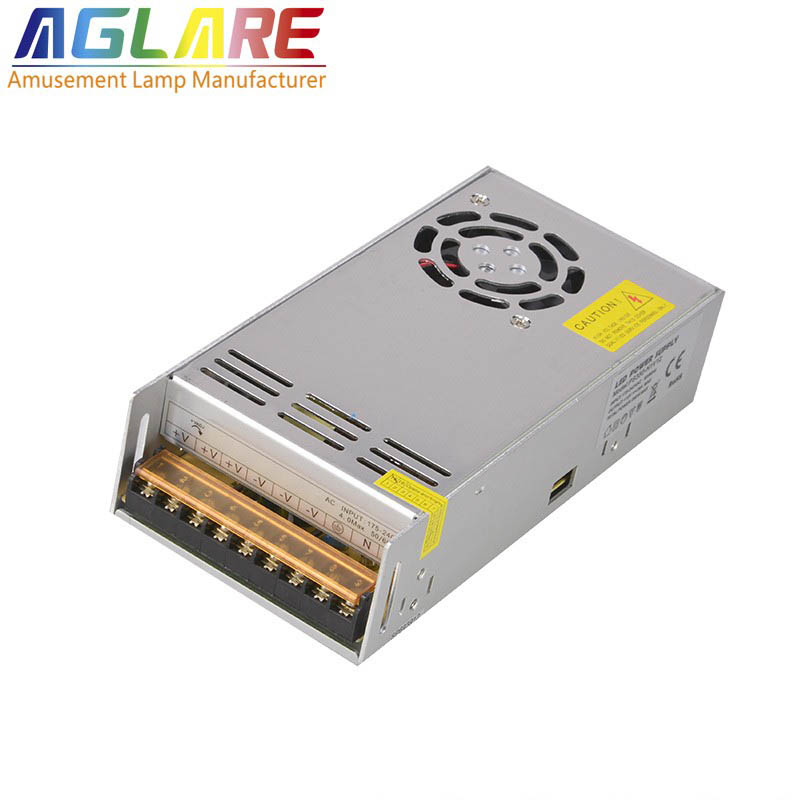

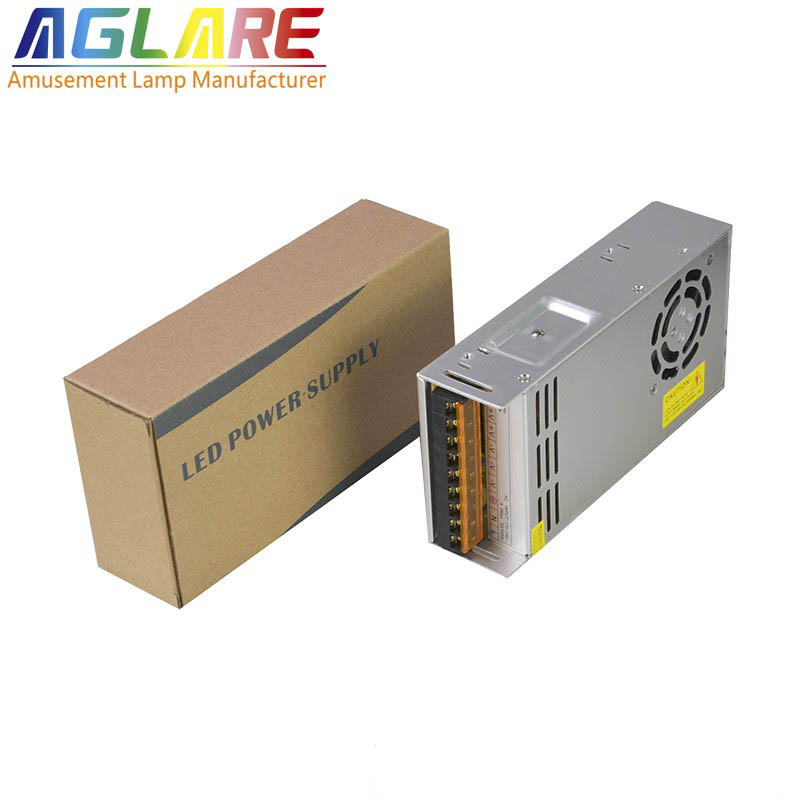

600W DC 12/24V 50A led switching power supply

600W DC 12/24V 50A led switching power supply

LEDchip:

Item Type: YJ600-H1V12

IP Rating: IP22

Lamp Power(W): 600W

Input Voltage(V): AC 175V-240V

Warranty(Years):

Product Details

600W DC 12/24V 50A led switching power supply

Product Parameters


Model NoYJ600-H1V12
Power600W
Size199*98.5*50mm
IP DegreeIP22
Input voltageAC 175-240V
Output voltageDC 12/24V
Output current50/25A


1. AC input range selectable by switch.

2. Protections: Short circuit / Overload / Over voltage / Over temperature.

3. Forced air cooling by built-in DC fan.

4. Withstand 300vac surge input for 5 second.

5. Built-in cooling Fan ON-OFF control.

6. Built-in constant current limiting circuit.

7. LED indicator for power on.

8. Fixed switching frequency at 90KHz.

9. Low cost, high reliability.

10. 2 years warranty.
