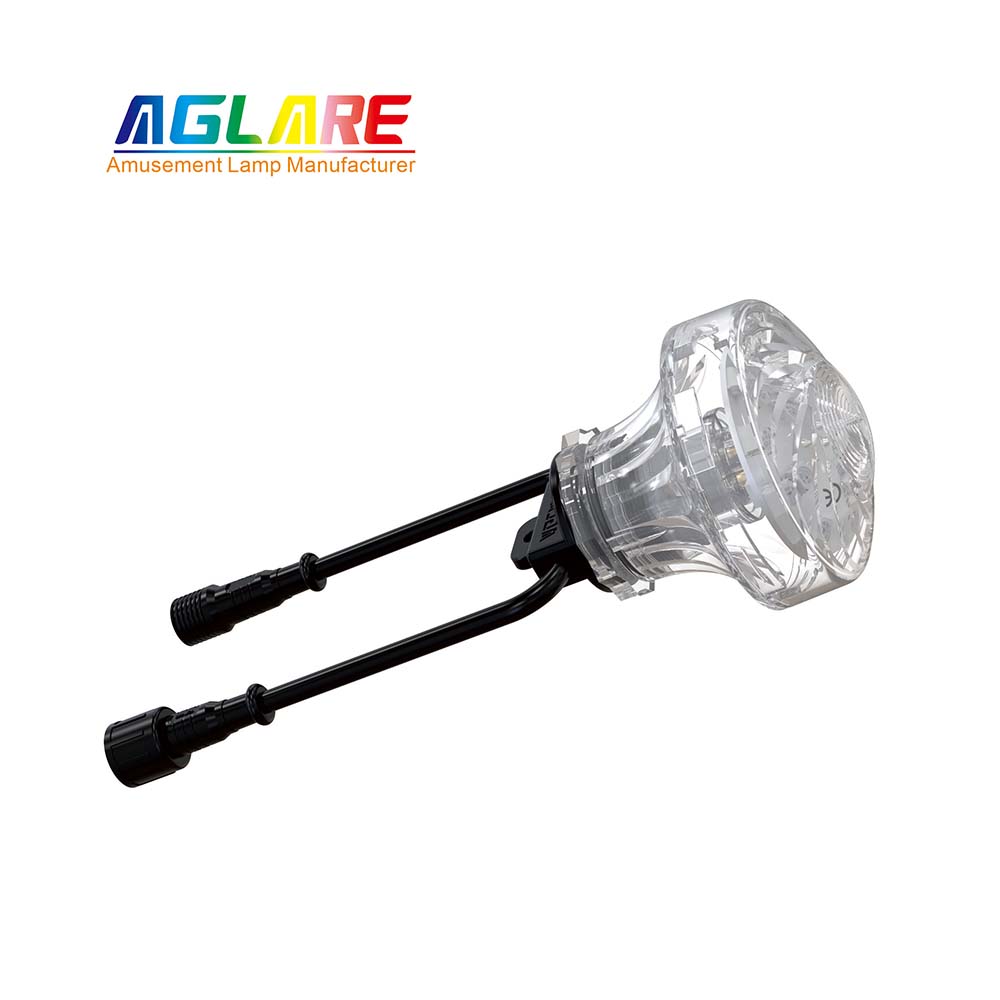

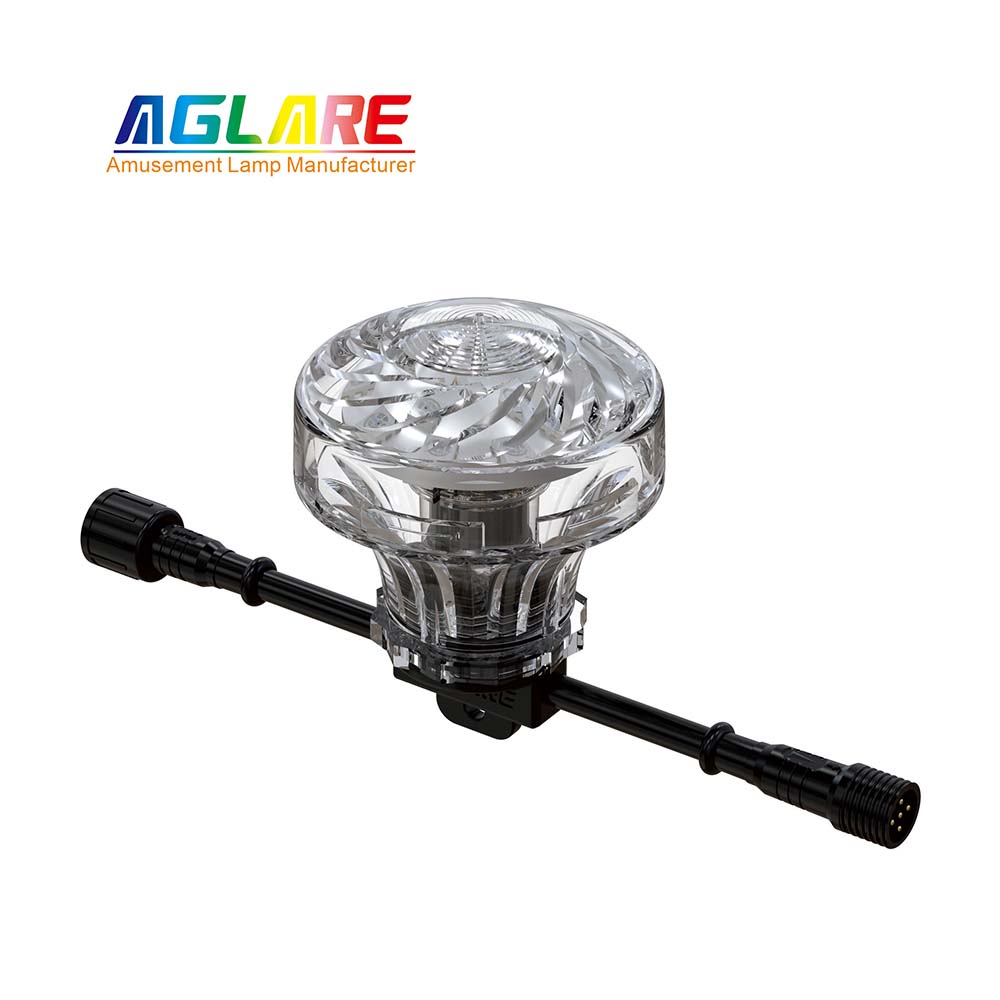

DC24V 60mm DMX RGB Cabochon Led Pixel Light for amusement fairground

Item Type: YJLED-070-SV18RGB-WB-C10-DMX

  • LEDchip: 5050smd
  • Item Type: YJLED-070-SV18RGB-WB-C10-DMX
  • IP Rating: IP55
  • Lamp Power(W): 3.6W
  • Input Voltage(V): DC24V
  • Warranty(Years): 1
Add to
Inquiry
  • Product Details
  • Parameters

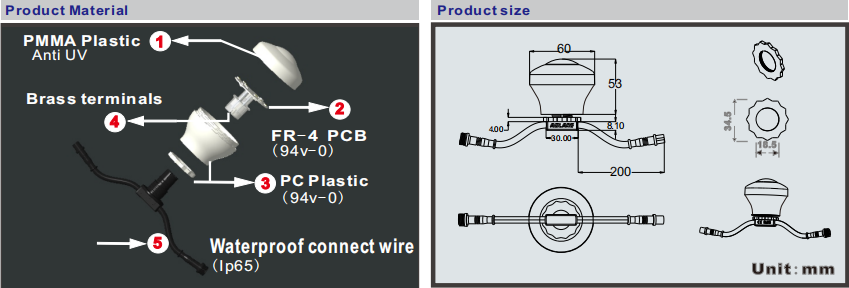

  • Structure
  • Application

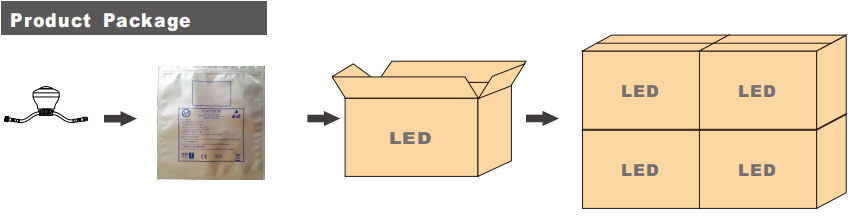

  • Package
  • Downloads

DC24V 60mm dmx rgb Cabochon Led Pixel Light for amusement fairground Features:

1.Diameter 60mm
2.18pcs smd5050 RGB LED, RGB full color.
3. Standard DMX512 IC control, it can work with any DMX controller.
4.Clear PC Shell with excellent waterproof performance, UV-resistance and PCB board, connector cables.
5.Each lightcan be controlled individually.
6.Easy to install, better drill the hole about 19 - 23mm.
7.With 4pin DMX IN&OUT cable connector, easy connection.

Model No: YJLED-070-SV18RGB-WB-C10-DMX
Power: 1-3.6W
RGB: programme
Input Voltage: DC24V
Power Factor: 0.9
Chip: 5050 SMD
CRI: 75
Color: RGB
Beam Angle: 240°
Diameter: 60mm
Working Temperature: -25℃-45℃
IP Degree: IP55
LED quantity: 18pcs

cabochon led lights
DMX RGB Cabochon Led Pixel Light, 60mm in diameter. DMX Controllable, RGB dream color. It's good for the theme parks' decoration. IP55 waterproof, suitable for outdoor installation.

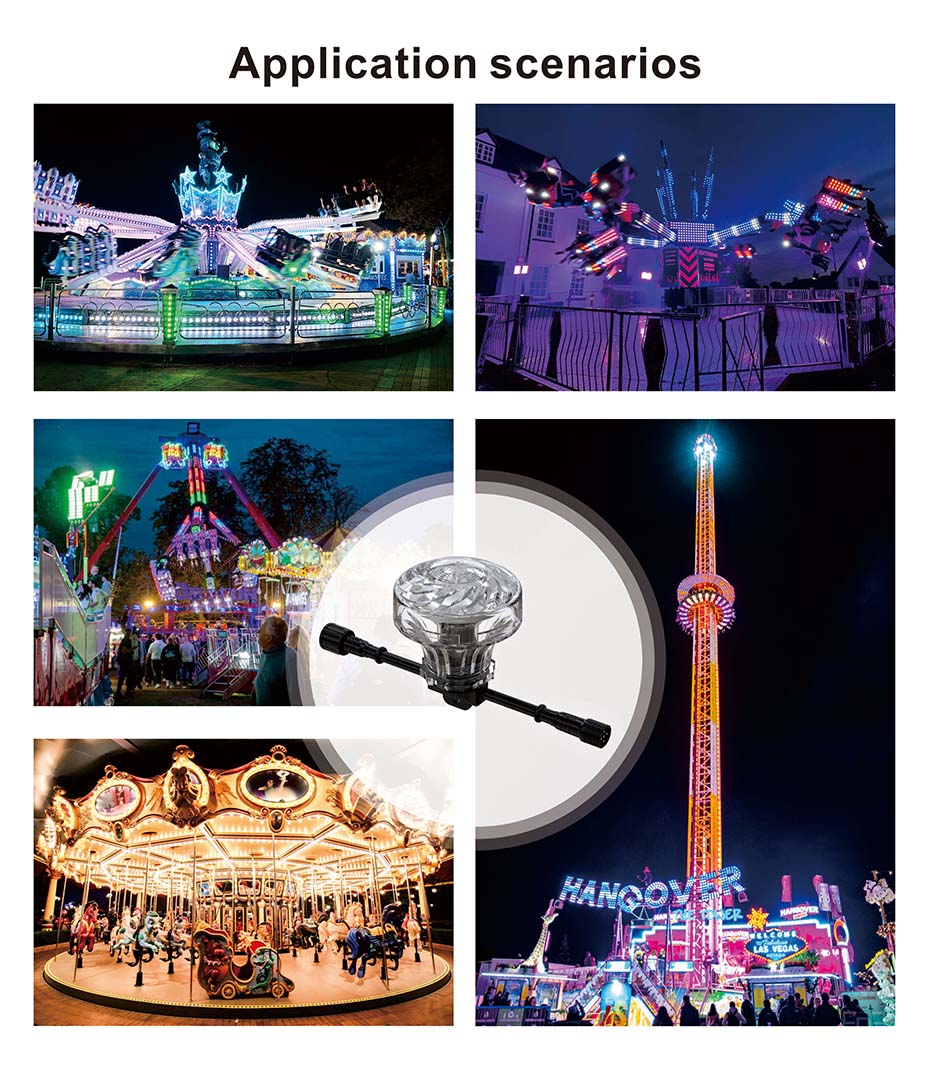

Aglare  DMX RGB LED Amusement Light are widely applied in amusement equipments in theme parks, such as Ferris Wheels, Roller Coasters, Carousels, Merry-go-rounds, Wheel Rides, Tower Rides, Flume Rides and Water Rides.

DC24V 60mm dmx rgb Cabochon Led Pixel Light,you can use controller to make color changing, normal use sd card controller,such as k-1000c,k-4000,k-8000c, you also can work them with dmx, but remember to use dmx decoders or the dmx controller have multi-function with dmx to spi.

dmx rgb led amusement

cabochon rgb amusement pixel led light


Weight/PCS Box Size G.W PCS/CARTON CARTON SIZE
82g 28*28*16cm 21.5KG 240 60*30*35cm


  • Instructions:

    K=K Material Carton Electronic Bag

  • Caution:

    Please read the specification before used

    working temperature range -25°C-45°C

    working voltage range less than +_10

    Please turn off the power before installation
