How to wire cabochon fairground lights?

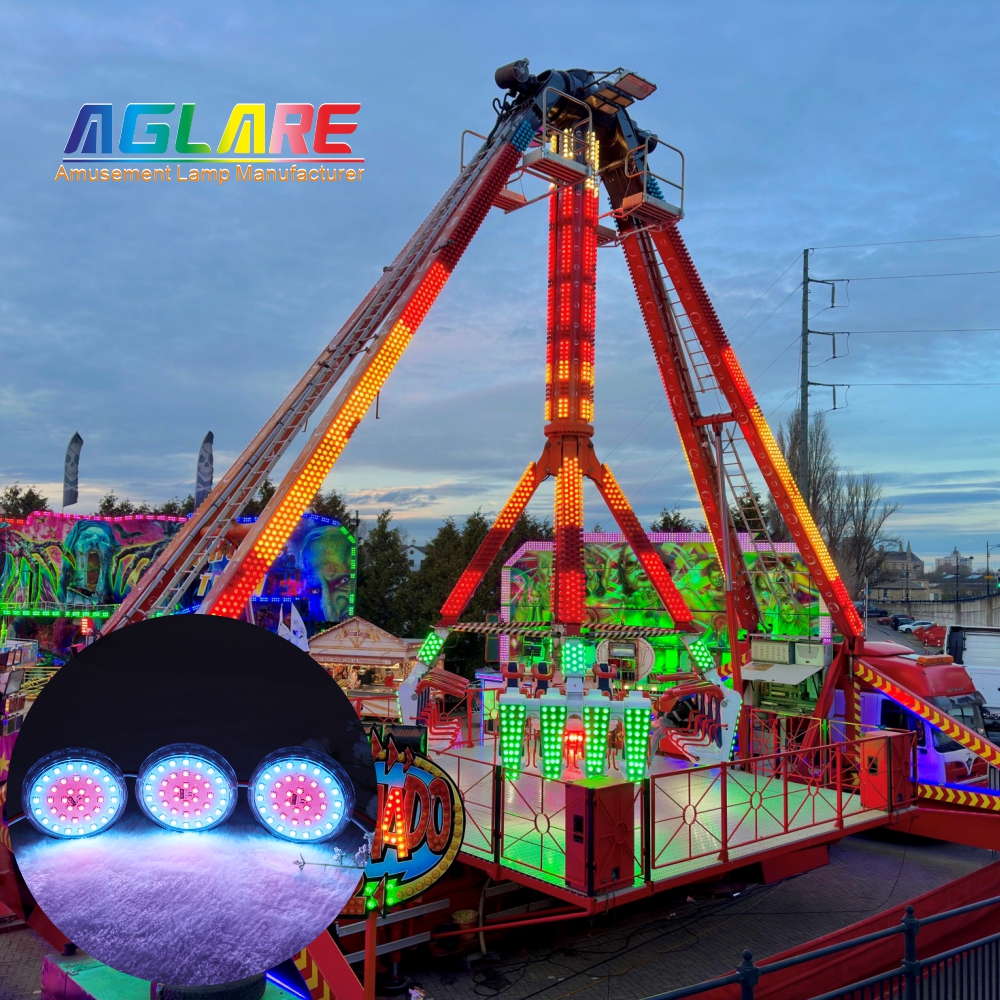

Aglare lighting for all fairground rides' illumination, our lighting solutions are suitable for various types of amusement facilities and attraction signs customized according to the design and required size, and can obtain excellent lighting effects.

How to wire cabochon fairground lights?
cabochon fairground light & LED bulbs have become ever more popular in a variety of industries, ranging from fairgrounds and sign production to restaurant and bars.If you choose Cabochon bulbs for your project, you can try

Drill a hole in the backing material – this could be a simple shape or the letters to make up your sign, wherever you intend to add your lights. For E10 Cabochons, you will need a 14mm hole. For E14 Cabochons, increase the size to 20mm.

Next, push the lamp holders through the back of each hole.For either size Cabochon, the maximum thickness of material for your lamp holders to be used with is 10mm. Any material thicker than this, and a 40mm diameter area will need to be rebated on the back of the material, where the lamp holder is meant to go. Be sure to leave a thickness of between 1-10mm.

From there, screw the Cabochon base onto the head of the lamp holder, making sure it is tightly and securely screwed on. This just ensures that the socket isn’t wobbly or your finished result insecure.
How to wire Cabochon lights

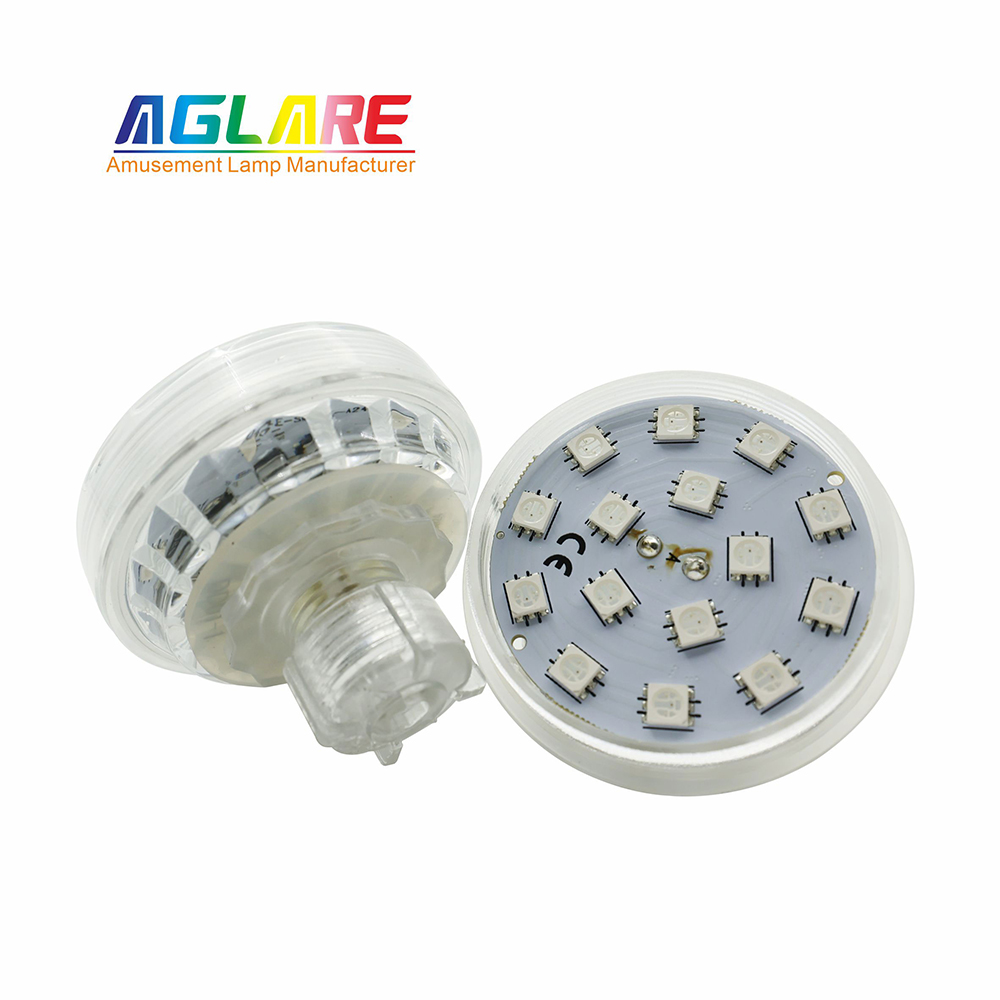

Once the Cabochon base has been screwed on, the next step is to screw in your LED lights inside the Cabochon base.

Place the Cabochon cap over the top and screw it on top. This closes the lighting unit so that the base matches the cap and dictates the pattern and colour of light from the front of the bulb.

On the back of your material, place your wires in the groove of the lamp holder. One thing to remember is that it doesn’t matter which way round the wires go.

Now, picking up the lamp holder nut, the next step is to screw it to the back of the holder. This is to pierce the wires on the brass spikes, ensuring that the wires are secure and in place to allow an electrical connection to be made between the wire and the bulb.

Take the 2 port lever clamps and attach the wires from your lights to the colour coded wires on your power source. Take care to ensure that the colours correctly correspond.

Following on from this, the final step is to attach the brown and blue wires of the power source to the mains. A simple 3-pin plug should suffice;

Note: if you’re unsure of what to do when connecting your lights to the mains supply, always seek the advice of a qualified electrician. Don’t attempt to do it alone unless you’re confident in how to do it.
